Specifications
Maximum Capacity, Standard Work Rests Diameter |
0-3” |
Maximum Work Diameter Depending on Work Rest Ordered |
4.5” |
Grinding Wheel Width |
1”-8” |
Grinding Wheel Maximum Diameter |
24” |
Grinding Wheel Minimum Diameter |
9.75” |
Grinding Wheel Hole |
12” |
Minimum Increment by Auto Infeed |
.000050” |
Grinding Wheel Speed |
1034 RPM |
Regulating Wheel Width Diameter |
1”-8” |
Regulating Wheel Maximum Diameter |
13” |
Regulating Wheel Hole |
5” |
Regulating Wheel Speeds (Infinitely Variable) |
15-300 RPM |
Approximate Weight |
12,500 lbs. |
Equipped With
EQUIPPED WITH:
Motor Driven with 20HP, 230/460 Volt, 3 Phase, 60 Cycle, AC Grinding Wheel Drive Motor.
1 ½ HP, 3 Phase, 60 Cycle Regulating Wheel Drive Motor.
1 ½ HP, 3 Phase, 60 Cycle AC Hydraulic Pump Motor.
MD Lubrication.
Automatic Cycling.
Electro-Hydraulic Infeed with Coarse and Fine Infeeds.
Variable Stock Removal Rates.
Infeed Handwheel Graduated in Five Ten Thousandths of an Inch.
Hydraulic Grinding Wheel Profile Diamond Truing and Hydraulic Regulating Wheel Profile Diamond Truing Units.
Infinitely Variable Regulating Wheel Speeds.
Wheel Outer Bearing Support.
Infinitely Variable Feed Rates.

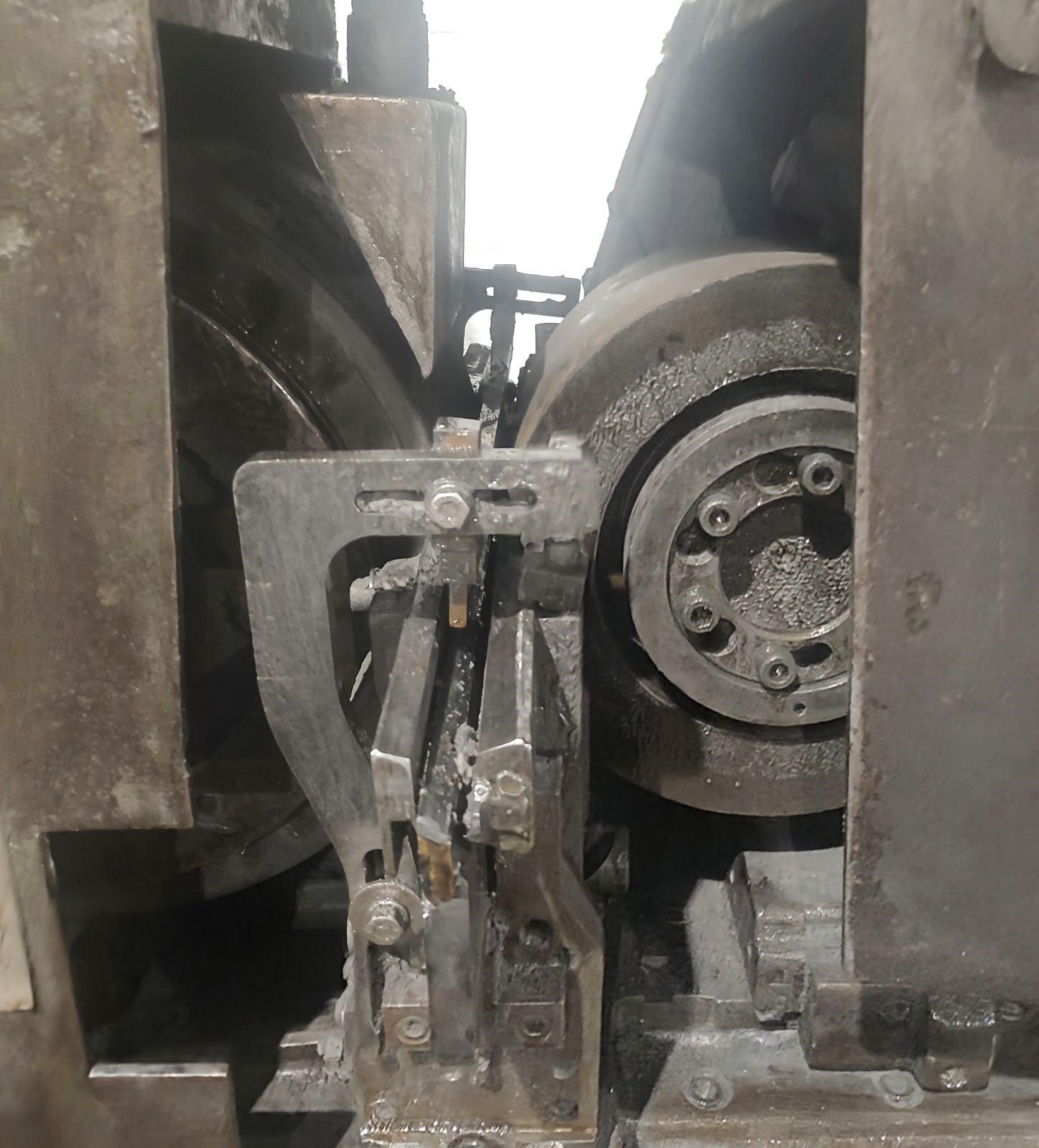

Work Rest 1-Way, 2-Way Dressing.
Fine and Coarse Compensation.
Swivel Headstock.
Regulating Wheelhead Tachometer.
Operators Master Control Station and Load Meter.

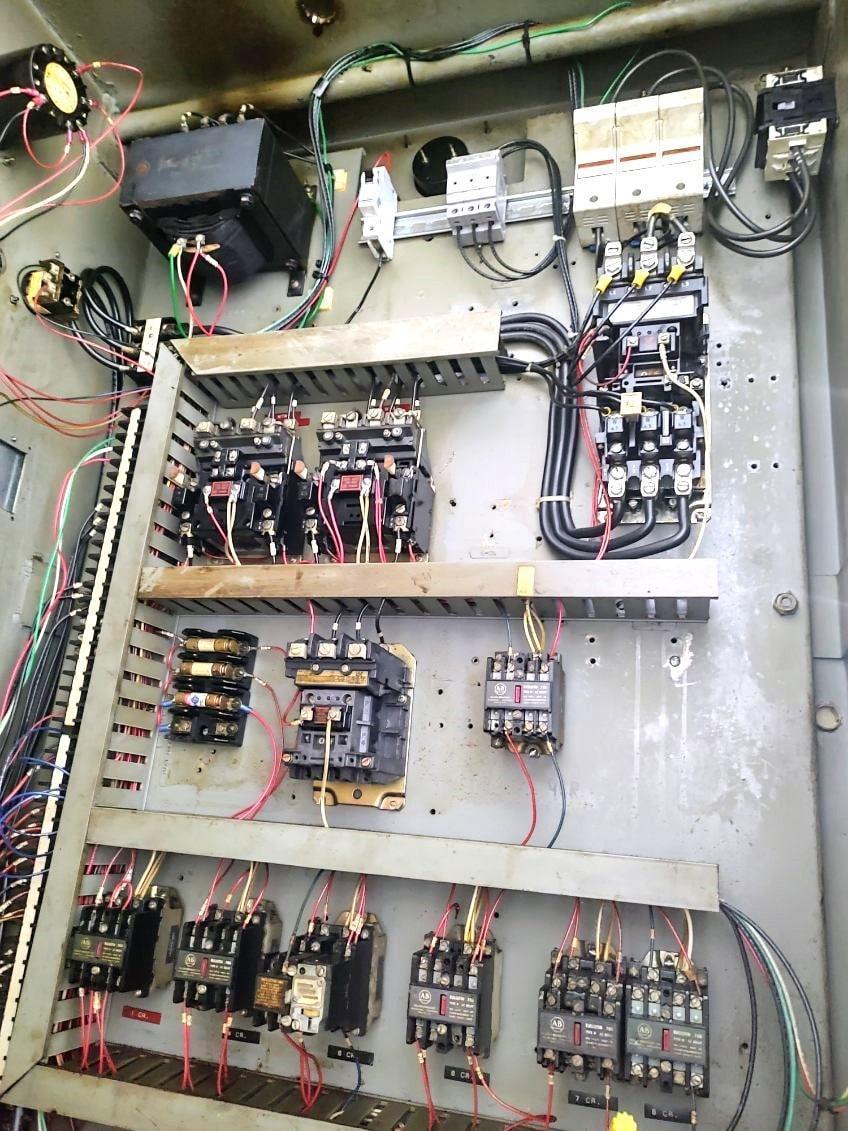

Rear Mounted Electrical Control Cabinet.

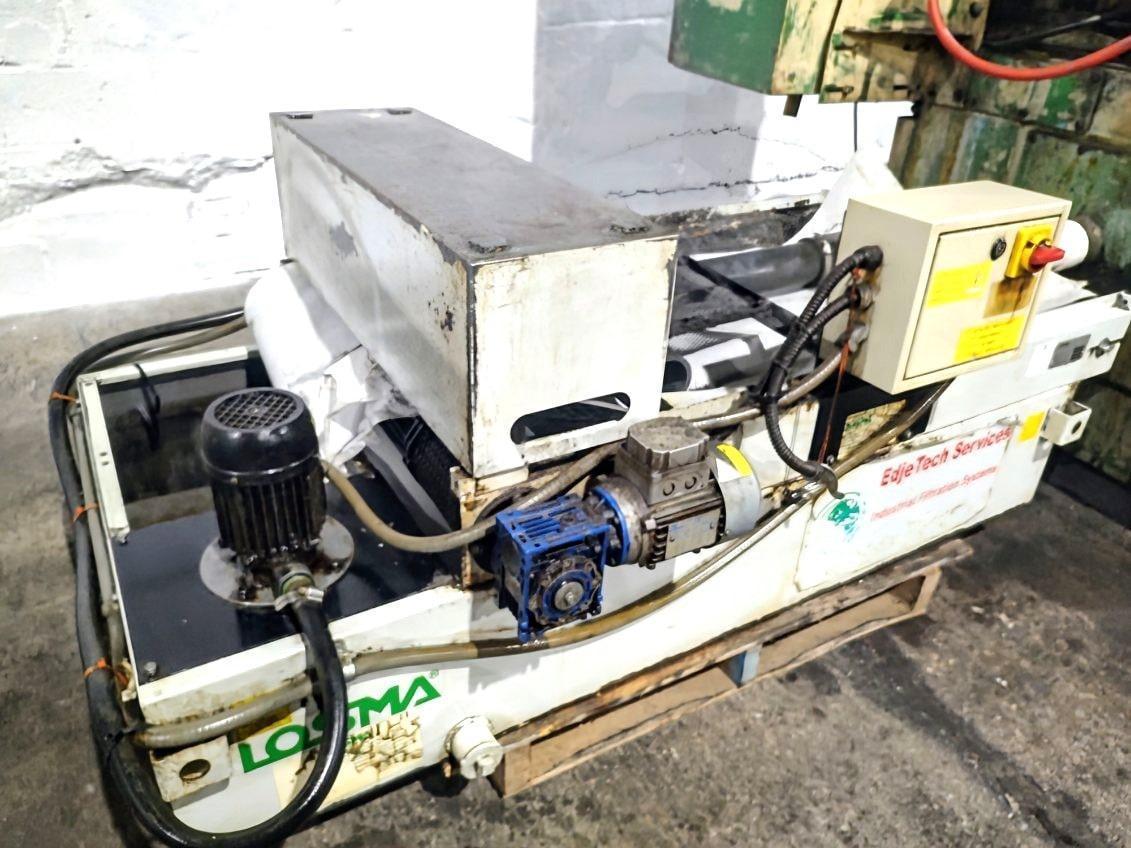

Cosma Coolant System with Paper Filtration.
