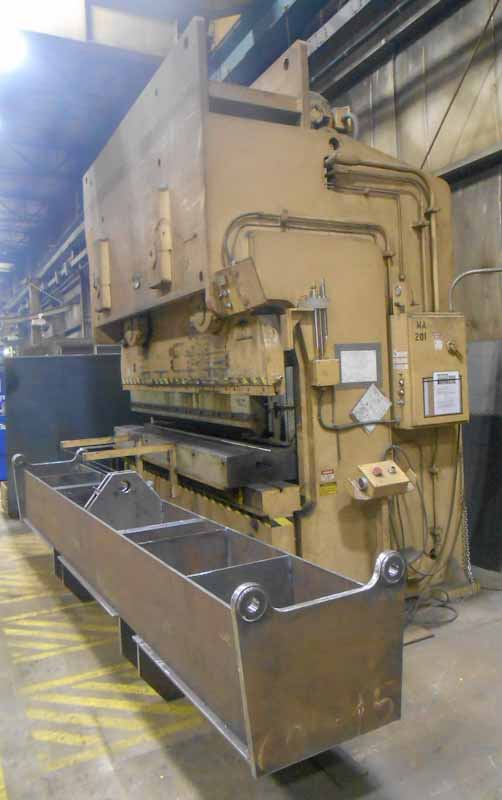

500-Ton Standard Model AB500-12 Hydraulic Press Brake

Brand
STANDARD

Model
AB500-12

Type
Presses, Hydraulic

Stock #
bras500x

Condition
Used

Year
1998

Location
City Not Specified, Wisconsin
United States

Request a Quote

Specifications

Forming Tonnage 500 tons
Punching Tonnage 330 tons
Overall Length of Bed and Ram 12 feet
Distance between Housing 10' 5"
Open Height 28 inches
Stroke 8 inches
Closed Height 20 inches
Throat Depth 10 inches
Overall Shipping Dimensions 13' LR X 7' FB x 13' 1" Height (with Lower Beam Removed)
Approximate Weight 82000 pounds

Equipped With

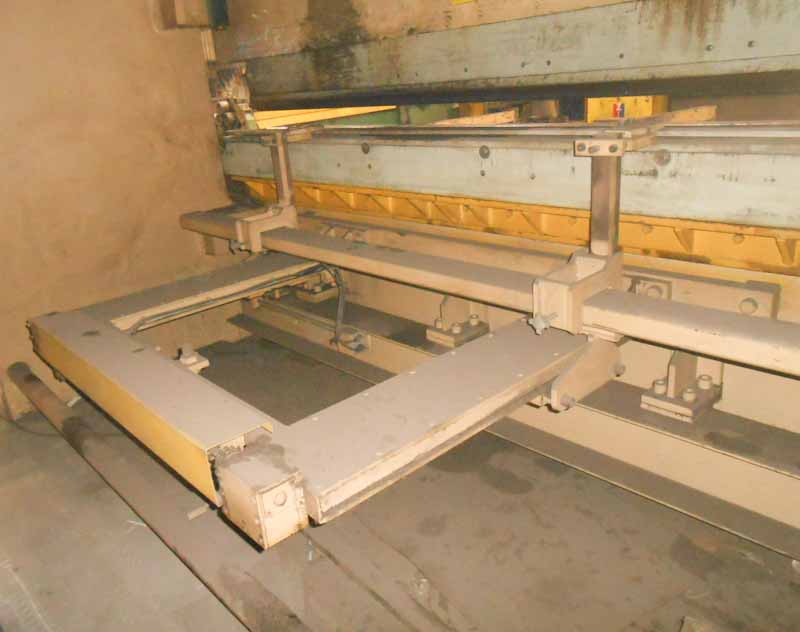

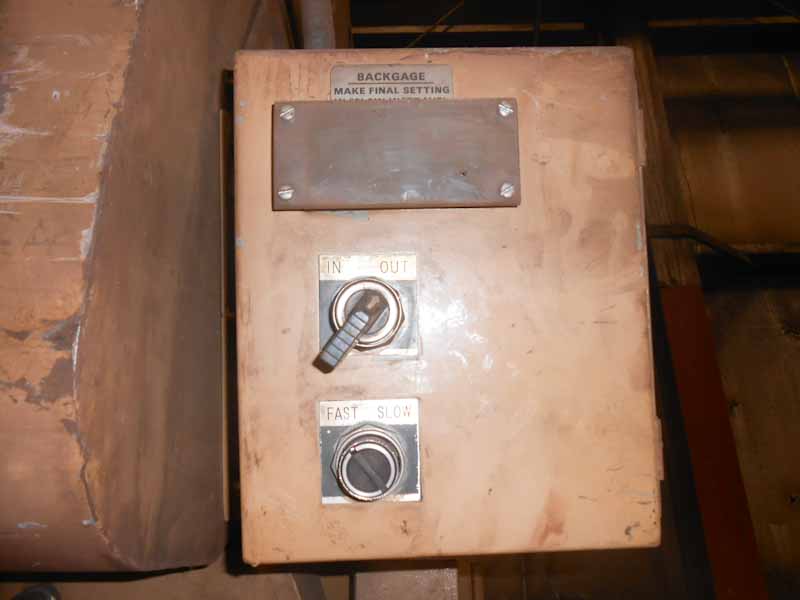

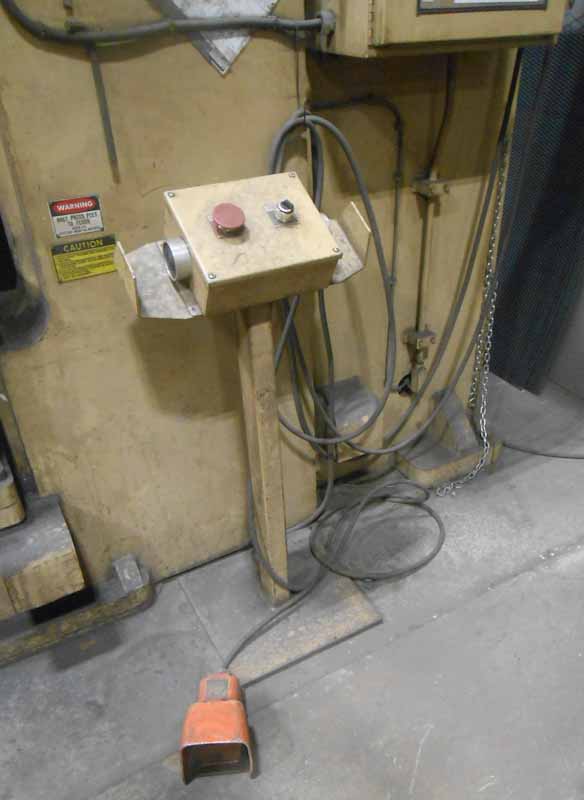

30" Front Operated Power Back Gauge. T-Stand with Dual Palms and E-Stop. Electric Foot Control. Hydraulic Pressure Adjustment with Pressure Gauge. Bed Machined for Flanges. 6" Extra Open Height. Bolt-In Lower Beam (Designed to be Removed for Shippment.)

**Approximately 18" deep Pit Required for Bed**
