Specifications
Equipped With

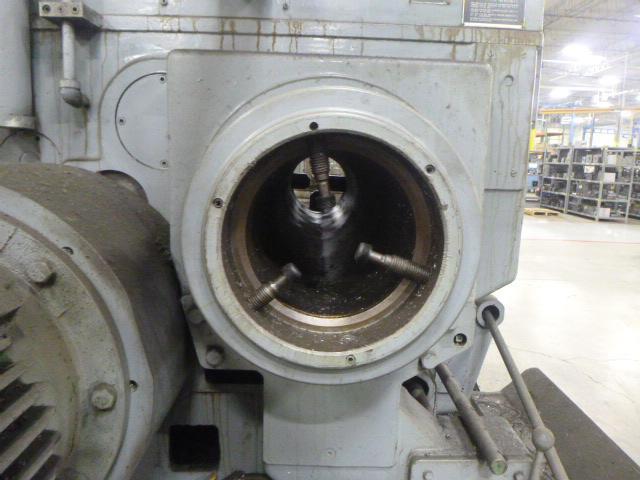

Hole Thru Spindle 9.25"
Bar Capacity, Round 9"
Bar Capacity, Square 6.375"
Bar Capacity, Hexagon 7.75"
Swing Over Bed Ways 29.5"
Swing Over Carriage Guard 28.25"
Swing Over Carriage Horn 22.44"
Turning Length, Maximum 59.875"
Carriage Longitudinal Travel (Z-Axis) 68.375"
Cross-Slide Cross Travel (X-Axis) 17"
Turret Longitudinal Travel (Z-Axis_ 68.375"
Spindle-Face to Turret, Maximum 80.19"
(16) Spindle Speeds, Range 10 to 526 RPM
Carriage Longitudinal Feeds (Z-Axis) .005 to .167 IPR
Cross-Slide Cross Feeds (X-Axis) .003 to .103 IPR
Turret Longitudinal Feed (Z-Axis) .005 to .167 IPR
Motor 50/25 HP
Electrical System 3/60/220V
Overall Dimensions, L x D 19'1" x 7'9"
Weight, Approximately 21,600 lbs.

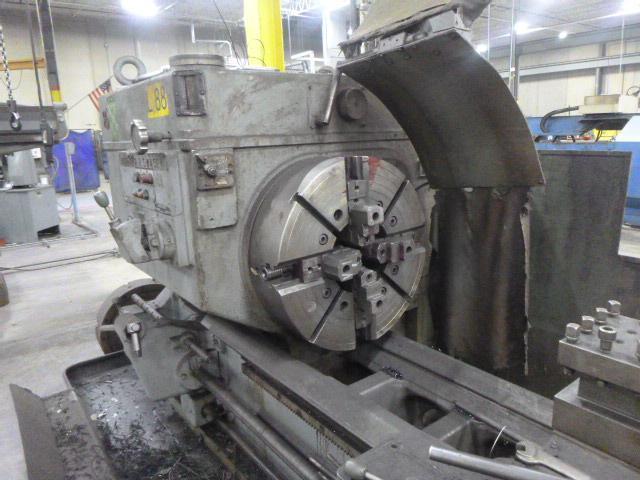

24" 4-Jaw Chuck. 24" 3-Jaw Chuck. 9.25 Hole Thru Spindle. Power Rapid Traverse to Carriage. Power Rapid Traverse to Saddle. (1) Long Flanged Tool Holder. (2) Short Flanged Tool Holders. (2) Vertical Sliding Tool Holders. (1) Multiple Turning Head. Coolant System.
