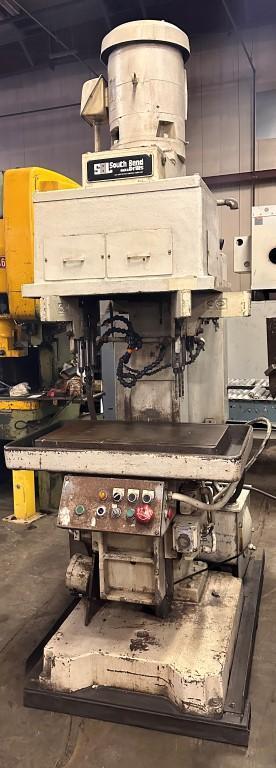

Brand
DEKA
Model
HRG 1222-18
Stock #
MSD630
Condition
Used
Year
1987
Location
Brook Park, Ohio
United States
| Number of Spindles | 18 |
| Drilling Area (Opening of Head) | 14 ½” FB x 22 ¾” LR |
| Center of Head to Face Ways on Column | 12” |
| Feed Stroke of Table | 6" |
| Range of Feeding | 0 to 90 IPM |
| Rapid Traverse Rate | 120 IPM |
| Distance Between Head Flange and Table Top | 28” Maximum/14” Minimum |
| Working Surface of Table | 19-3/4” FB x 29 ½” LR |
| Head Drive Motor (875 RPM) | 15 HP |
| Size of Hex Drives | ¾” |
| 18 Spindles | 9/16” |
| 10 Spindles | 25/32” |
| 8 Spindles | 7/8” |
| 18 Spindles | ½ - 20NF |
| 11 Spindles | ¾ - 16NF |
| 9 Spindles | 1” – 12NF |
| Spindle Speed Range (with Change Gears) | 173-1561 RPM |

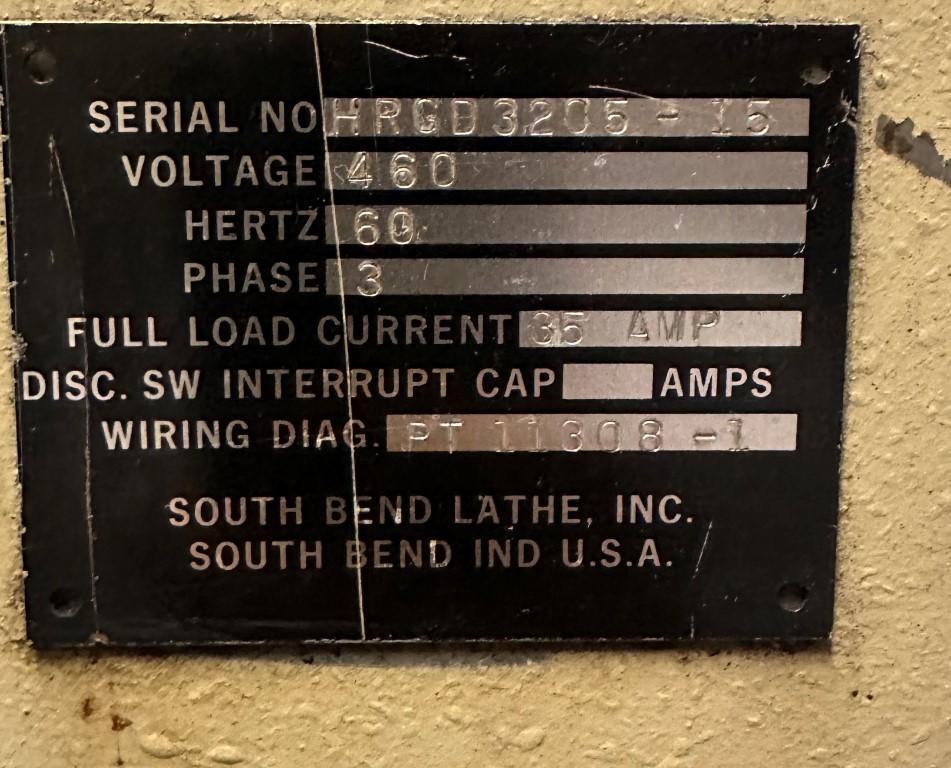

| Electrics | 3/60/230-460V |
| Presently Wired for | 3/60/460V |
| Approximate Dimensions | 46” LR x 58” FB x 115” Height |
| Approximate Weight | 4,500 Lbs. |
