Specifications
Equipped With

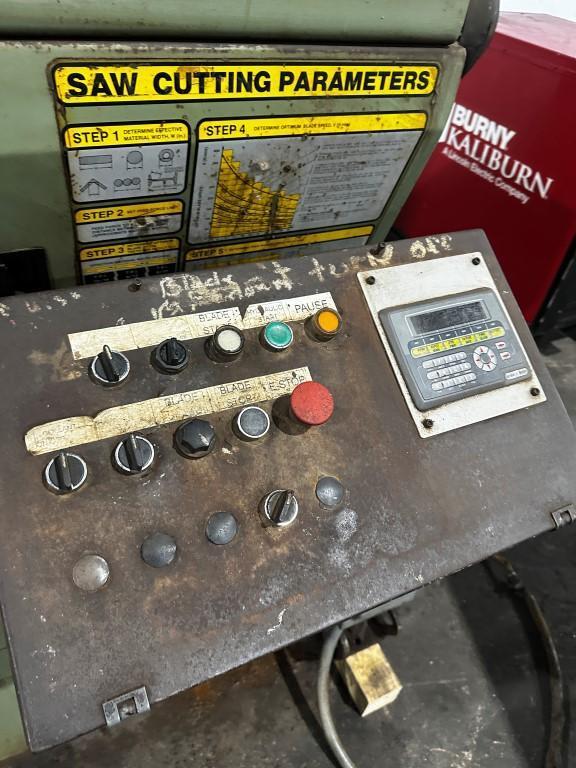

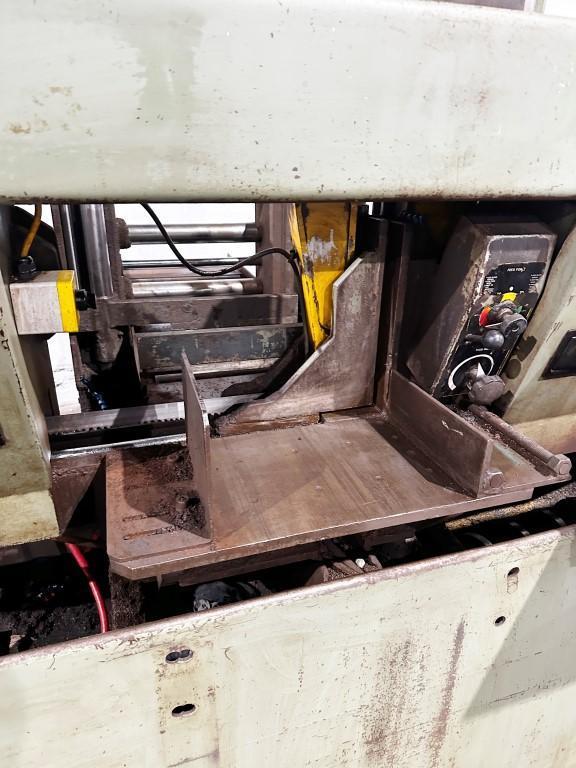

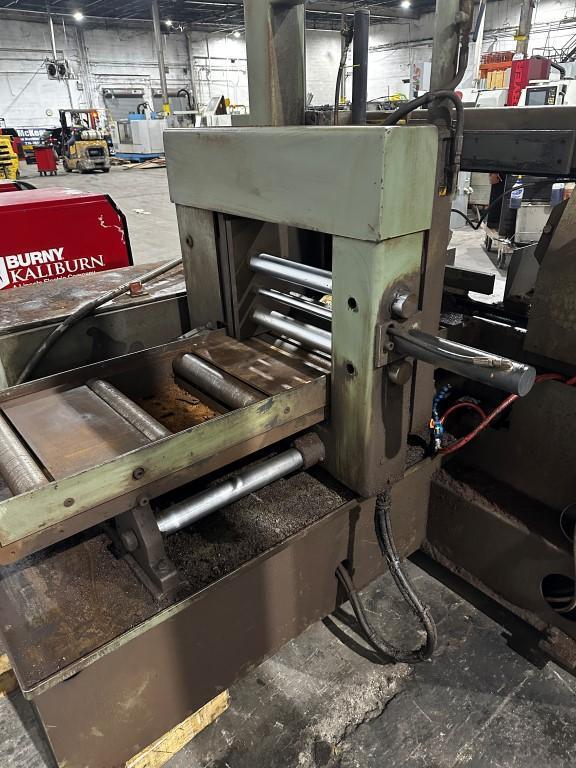

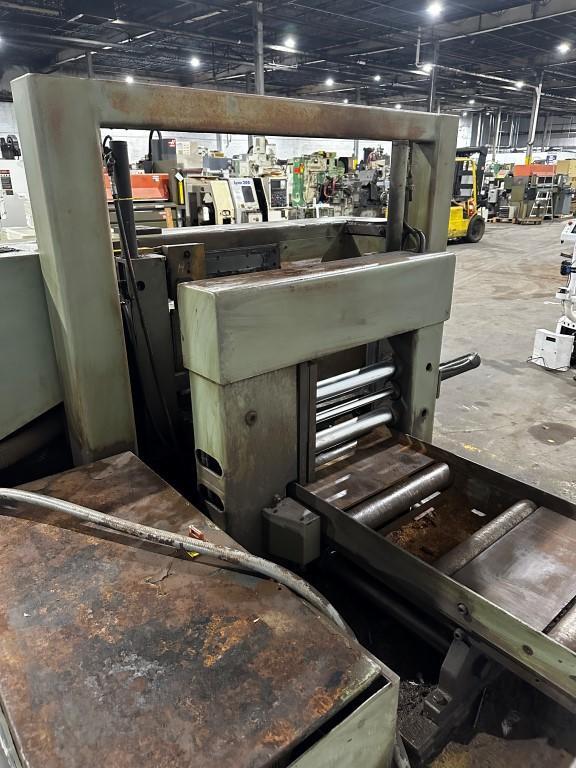

Equipped with Dual Column Design. Hyd-Mech PLC Programable Cycle Controls. Column Mounted Joystick Head Positioning control. Heavy Duty Infeed Conveyor Table with Shuttle Vise. Split Front Vise. Bundling Vise. Chip Auger. Discharge Tray.
Specifications:
Rectangular 14" x 14"
Round 14"
Blade dimensions 15'4" x 1-1/4"
Blade Drive 10 HP
Blade wheel diameter 19"
Blade Speed 50-350 SFM
Shuttle stroke (automatic only) 34"
Hydraulic drive 2 HP
Coolant tank capacity 25 US gal
Table height 31"
Max. Work Load 7000 lbs.
Automatic Machine Weight 4500 lbs
Machine dimensions 97" x 92"
Machine height 72"
